Aphelion Arc
A prefabricated energy infrastructure cabin integrating PCS, transformer, medium-voltage switchgear, protection and EMS into one coordinated system.
Discuss this product
Aphelion · Utility-Scale
Product overview
Arc is the broadest infrastructure boundary in Aphelion: a prefabricated energy cabin integrating PCS, transformer, medium-voltage switchgear, protection and EMS.
Aphelion is the farthest point in an orbit: a utility-scale series built around larger, more distributed energy infrastructure.
Back to Utility-Scale energy storage At a glance
- 500 kW / 1.044 MWh
- Up to 500 kWp PV input
- Grid-connected and off-grid modes
Product architecture
Define the system boundary first
Rather than behaving like a conventional battery container, Arc coordinates conversion, transformation, switching, protection and control inside one engineered cabin.
Protection and control included
Protection and EMS are part of the coordinated prefabricated system architecture.
Central operating interface

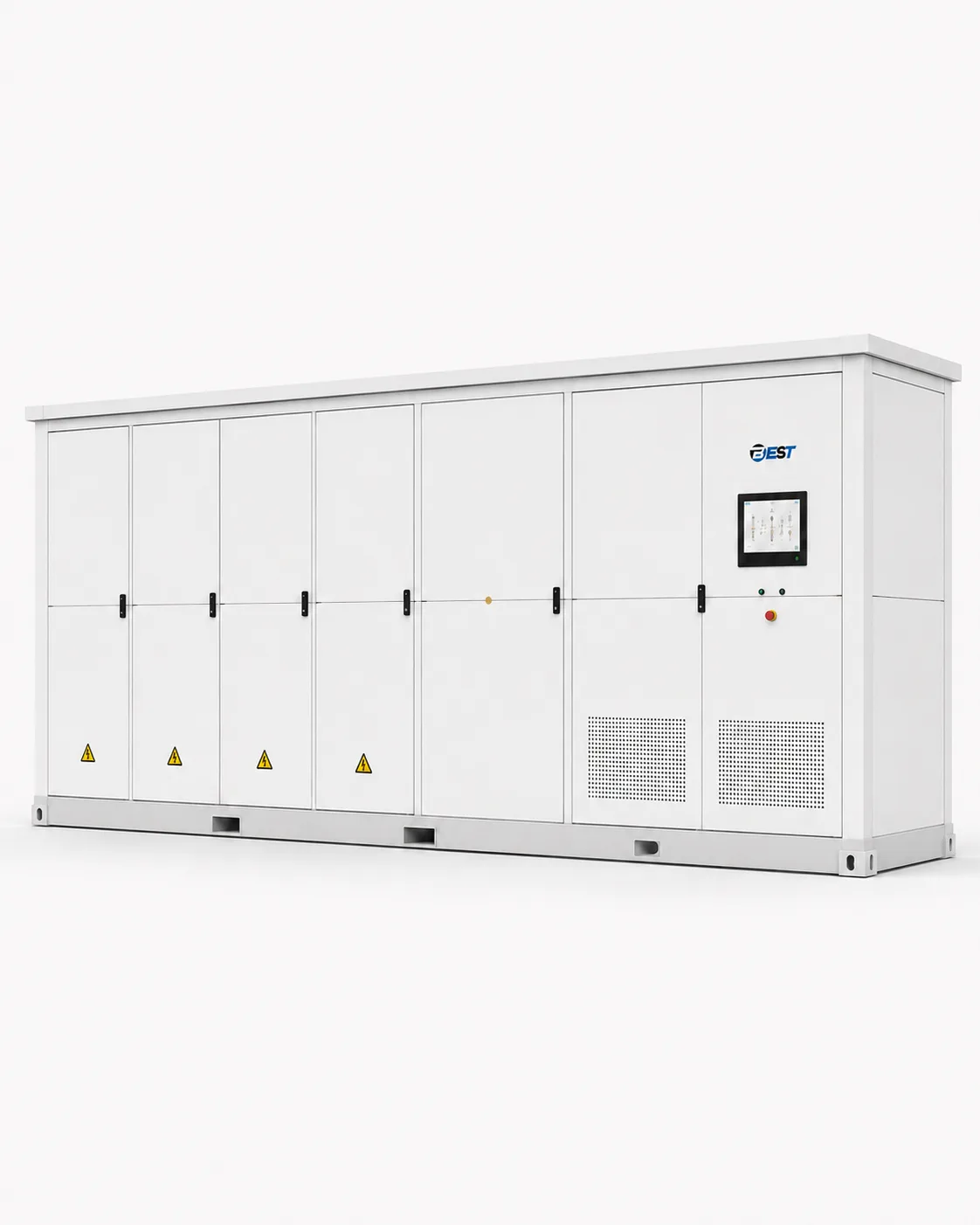

A larger HMI, status lights and emergency stop are concentrated on the right-side functional area.
Published product boundary
Inside Aphelion Arc
- PCS, transformer and MV switchgear
- Protection and EMS
- Central HMI, status lights and emergency stop
Project coordination
Confirm around the product
- Battery-side architecture and project duration
- Upstream collection and grid requirements
- Auxiliary supply, civil works and site fire plan
Configuration shortlist
A focused product range
Each product stays focused on one or two published configurations. Installation, voltage, enclosure, interface and power-conversion choices stay visible without turning every option into another SKU.
- System scale
-
- 500 kW / 1.044 MWh / up to 500 kWp PV
- Operating mode
-
- Grid-connected
- Off-grid
- Local interface
-
- Central HMI
- Status indication
- Emergency stop
- Enclosure and cooling
-
- IP54 liquid-cooled battery cabinets
- IP20 air-cooled conversion equipment
- Site electrical package
-
- Transformer and medium-voltage equipment configured to project requirements
- Published configuration 01 Technical data available
500 kW / 1.044 MWh microgrid cabin
A prefabricated microgrid configuration coordinating four liquid-cooled battery cabinets, 500 kW of power conversion and up to 500 kWp of PV input.
- 500 kW
- 1.044 MWh
- Up to 500 kWp PV
- Grid / off-grid
Final compatibility and project-specific settings are confirmed during system design.
Application fit
Start with the project
Application fit shows where to begin the engineering conversation. Final compatibility and performance are confirmed during project review.
Utility interconnection blocks
Consider Arc where multiple electrical infrastructure layers need one coordinated prefabricated boundary.
Microgrid infrastructure
Use the cabin as an integration point within a wider site control and generation architecture.
Distributed energy coordination
Define battery inputs, upstream connection and dispatch requirements before final system configuration.
Published technical data
Technical data by configuration
Compare the one or two mainstream configurations selected for this product. Final controls, protection and market-specific settings remain part of project design.
Aphelion Arc
500 kW / 1.044 MWh microgrid cabin
A prefabricated microgrid configuration coordinating four liquid-cooled battery cabinets, 500 kW of power conversion and up to 500 kWp of PV input.
| Parameter | Value |
|---|---|
| Battery energy | 1,044 kWh |
| Battery arrangement | 4 × 261 kWh liquid-cooled cabinets |
| Battery voltage range | 650–949 V DC per cabinet |
| Battery enclosure protection | IP54 |
| Max. PV power | 500 kW |
| Max. PV input voltage | 1,000 V DC |
| MPPT voltage range | 250–850 V DC |
| Parameter | Value |
|---|---|
| Rated AC output power | 500 kW |
| Max. apparent power | 550 kVA |
| Grid voltage range | 320–460 V AC |
| Off-grid rated voltage | 400 V AC |
| Rated frequency | 50 / 60 Hz |
| AC connection | 3W + N + PE |
| Conversion-equipment protection | IP20 |
| Operating temperature | −30–55°C |
