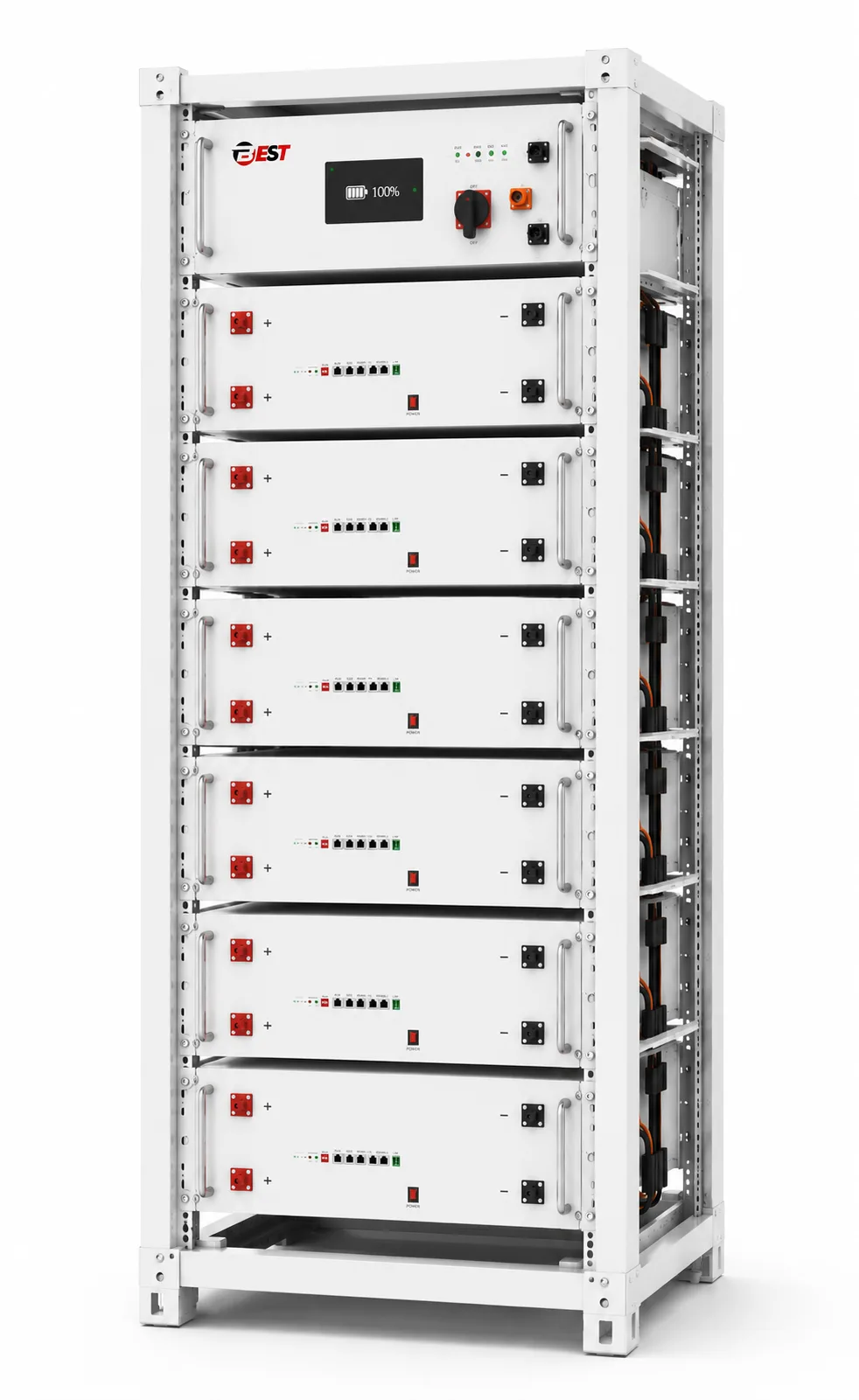

Packs stay visible
The open rack exposes the modular battery layout instead of hiding it behind a cabinet shell.
Energy Storage / Focal / Commercial & Industrial
Focal Core
An open 19-inch rack battery architecture that keeps the battery packs visible and brings low- and high-voltage configurations into one maintainable platform.
Discuss this product
Focal · Commercial & Industrial
Product overview
Core is the open-rack member of Focal. It keeps the battery packs visible inside a 19-inch architecture and brings low- and high-voltage project paths into one maintainable product family.
Focal takes its name from the point where an orbit is organised: a C&I series for bringing storage, conversion and control together.
Back to Commercial & Industrial energy storage At a glance
- 51.2 / 614.4 V system paths
- 10.24 / 122.88 kWh storage
- Rack, cabinet or wall installation
Product architecture
Define the system boundary first
The open format makes module arrangement, cabling and service access part of the visible design. Conversion, enclosure protection and site controls are coordinated around the rack.
One family, two voltage paths
Low- and high-voltage configurations remain under one Focal Core product identity.
Service-led structure
The 19-inch rack format puts module access and maintainability at the centre of the architecture.
Published product boundary
Inside Focal Core
- Open 19-inch rack
- Visible battery packs
- Low- or high-voltage configuration path
Project coordination
Confirm around the product
- Compatible inverter or PCS
- Room or enclosure protection strategy
- Site controls, metering and communications
Configuration shortlist
A focused product range
Each product stays focused on one or two published configurations. Installation, voltage, enclosure, interface and power-conversion choices stay visible without turning every option into another SKU.
- Voltage architecture
-
- 51.2 V low-voltage
- 614.4 V high-voltage
- Installation
-
- Rack or cabinet
- Wall-mounted low-voltage pack
- Communications
-
- CAN
- RS485
- RS232 on low-voltage pack
- Wi-Fi option
- Bluetooth
- Low-voltage inverter pairing
-
- 14 kW three-phase
- 20 kW three-phase
The matching three-phase inverter platform uses a 40–60 V battery input, IP65 enclosure and touch LCD. This option applies to the low-voltage rack only and requires BMS, current and parallel-pack checks.
- Published configuration 01 Technical data available
51.2 V / 10.24 kWh low-voltage rack
A serviceable low-voltage rack pack that can be installed in a cabinet or mounted on a wall.
- 10.24 kWh
- 51.2 V DC
- 100 A
- Rack, cabinet or wall
Final compatibility and project-specific settings are confirmed during system design.
- Published configuration 02 Technical data available
614.4 V / 122.88 kWh high-voltage rack
A twelve-module high-voltage rack centred on 10.24 kWh packs and a 614.4 V nominal DC bus.
- 122.88 kWh
- 614.4 V nominal
- 12 modules
- IP20 cabinet
Final compatibility and project-specific settings are confirmed during system design.
Application fit
Start with the project
Application fit shows where to begin the engineering conversation. Final compatibility and performance are confirmed during project review.
Integrator-built systems
Consider Core when the battery rack is one visible layer inside a wider engineered storage system.
Equipment-room deployment
Use the open format where the room or external enclosure supplies the required environmental boundary.
Service-oriented storage
Select the rack architecture where module visibility and planned access are central to the maintenance concept.
Published technical data
Technical data by configuration
Compare the one or two mainstream configurations selected for this product. Final controls, protection and market-specific settings remain part of project design.
Focal Core
51.2 V / 10.24 kWh low-voltage rack
A serviceable low-voltage rack pack that can be installed in a cabinet or mounted on a wall.
| Parameter | Value |
|---|---|
| Rated energy | 10.24 kWh |
| Nominal voltage | 51.2 V DC |
| Operating voltage range | 43.2–57.6 V DC |
| Nominal capacity | 200 Ah |
| Max. charge / discharge current | 100 A |
| Parallel connection | 1–15 packs |
| Depth of discharge | 90% |
| Parameter | Value |
|---|---|
| Installation | Rack / cabinet or wall-mounted |
| Ingress protection | IP20 |
| Pack dimensions | 520 × 773 × 164.5 mm |
| Net weight | 85 kg |
| Working temperature | 0–55°C |
| Storage temperature | −20–55°C |
| Relative humidity | ≤80% |
Focal Core
614.4 V / 122.88 kWh high-voltage rack
A twelve-module high-voltage rack centred on 10.24 kWh packs and a 614.4 V nominal DC bus.
| Parameter | Value |
|---|---|
| Rated energy | 122.88 kWh |
| Nominal system voltage | 614.4 V DC |
| Operating voltage range | 518.4–691.2 V DC |
| Module count | 12 |
| Battery module | 51.2 V / 200 Ah / 10.24 kWh |
| Max. module charge / discharge rate | 0.5C / 100 A |
| Parameter | Value |
|---|---|
| Installation | Cabinet rack |
| Ingress protection | IP20 |
| Rack dimensions | 826 × 636 × 2,410 mm |
| Cabinet weight | 130 kg |
| Working temperature | 0–55°C |
| Storage temperature | −20–55°C |
| Relative humidity | ≤80% |
Prepare a useful enquiry
Bring these four project inputs to the first sizing conversation:
- Site load profile
- Target power and duration
- Grid voltage
- Outdoor and service constraints
Certifications and compliance
- CE
- UL
- FCC
- UN 38.3
- MSDS
Certification marks apply to the published product family; final market applicability follows the selected configuration.
Focal series
Choose by system boundary
Each sibling keeps a distinct role. Compare the product form and published configurations first, then confirm the final project design.
Current product
Focal Core
An open 19-inch rack battery architecture that keeps the battery packs visible and brings low- and high-voltage configurations into one maintainable platform.
Viewing now
Vault
Focal Vault
A split outdoor energy storage system pairing a battery cabinet with a right-side inverter or PCS module.
View Focal VaultUnity
Focal Unity
A single-cabinet C&I system integrating battery, PCS, BMS, liquid cooling and fire protection behind one unified enclosure.
View Focal UnityTurn architecture into a project plan
Share the target voltage path, inverter or PCS interface and installation environment so the appropriate verified Core rack can be selected.
